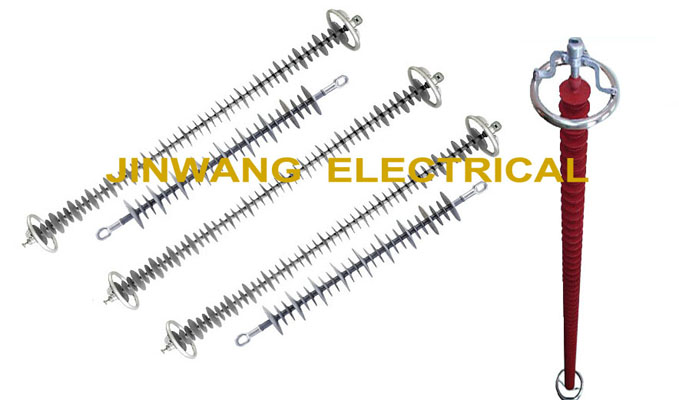

About the suspension long rod insulator
The high voltage suspension long rod insulator is special for badly polluted areas, high mechanical tension load,long span and compact power line. And the suspension insulator have features of light weight, small volume, unbreakable, anti-bend, high strength for anti-tw ist and strong explosion protection. So the composite insulator brings great convenienceto the transportation,installation, maintenance.We are specialized in composite insulator,and exported to Northeast Asia,Middle East,Africa,Latin America,Russia,India,etc..
Advantages of suspension long rod insulator
* suspension long rod insulator has high strength, light weight. Can relieve stress, reduce the installation and maintenance of towerof strength, save costs. Because the rod core with tensile strength is high so the suspension long rod can be very handy.
It aging resistance, good. suspension long rod has good corrosion resistance,aging resistance, at 70 degrees Celsius is elastic, can be long - term work 20 degrees celsius.
It has the advantages of small volume, light weight. Because the suspension long rod
has the advantages of small volume, light weight, and the umbrella disk is flexible, not easy to damage,so it brings great convenience to the transportation, installation, maintenance
Specifications
certificated by KAMA/ ISO9001.
We can design and produce according to the drawings.
we supply insulators with reliable quality reasonable price and good service.
Material
silicon rubber, composite polymer
glass-fiber reinforced epoxy resin rod
hot-dip galvanized steel

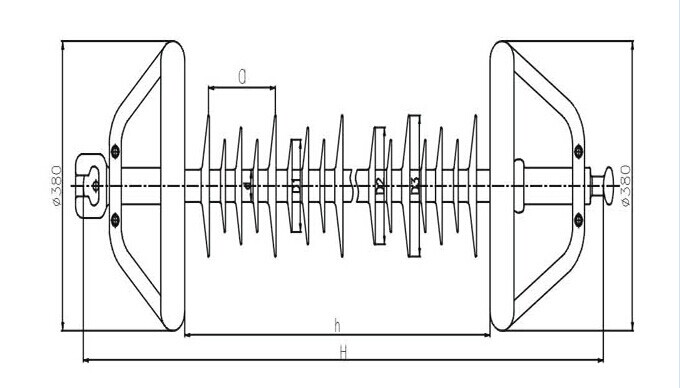

Technical drawings
|
Model
|
Rated Voltage
(kV)
|
Rated mechanical
bending load(kN)
|
Shed Diameter
(mm)
|
Min.Arc
distance Lc.(mm)
|
Min.creepage
distance Lc.(mm)
|
Lightning impulse with stand voltage(peak)(kV)
|
P.F.1min withstand voltage (kV)
|
|
Dry
|
Wet
|
|
FXBW3-150/160BT-1526
|
150
|
120/160
|
85/160
|
1310
|
4280
|
720
|
390
|
320
|
|
FXBW3-220/210BS-2150
|
220
|
120/210
|
85/160
|
1860
|
6265
|
1175
|
675
|
540
|
|
FXBW3-230/160BS-2370
|
230
|
120/160
|
110/175
|
2260
|
9836
|
1425
|
675
|
550
|
|
FXBW3-275/120BS-2935
|
275
|
120
|
80/140
|
2679
|
9269
|
1450
|
690
|
550
|
|
FXBW5-330/210BS-2930
|
330
|
180/210
|
85/160
|
2704
|
9259
|
1550
|
800
|
640
|
|
FXBW3-420/180BS-4040
|
420
|
180/210
|
85/160
|
3806
|
13185
|
1175
|
950
|
740
|
|
FXBW5-500/210BS-4455
|
500
|
160/210
|
85/160
|
4020
|
14000
|
2050
|
975
|
780
|
|
FXBW765/210BS-6550
|
765
|
160/210
|
85/160
|
6260
|
21949
|
2700
|
1300
|
1150
|
Note: According to user requirements, to product the production with special connection structure and the height.Different sizes of corona rings are accessible per requirements.

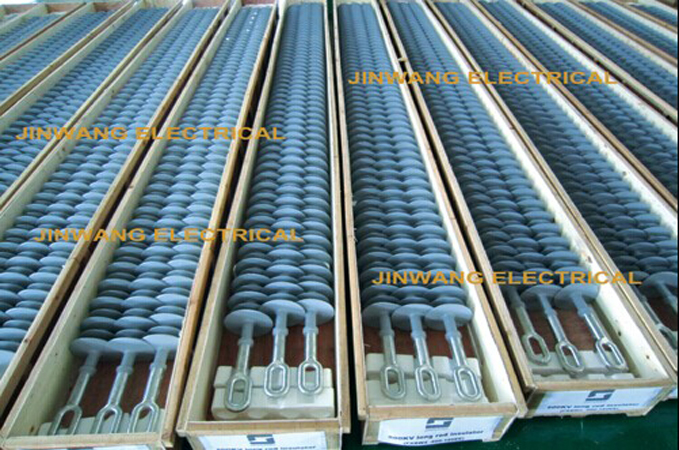

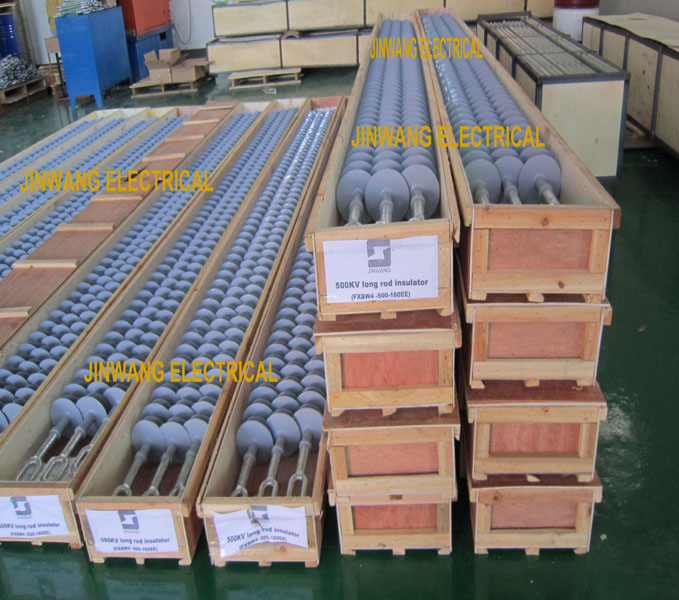

Installation Notes
* The Insulator in the transportation and installation should be taken and put down gently, and avoid crashing and rubbing with all kinds of miscellaneous
(Wires, line board, tools etc.) pieces and hard thing.
* when composite insulator is lifted ,the knot should be bolted on parts(hardware fittings).It is strictly prohibited to bolted on umbrella skirt or the sheath. When the rope must touch the umbrella skirt and the sheath part, it should be contact with a soft cloth.
* This insulator umbrella skirt material formula considers the drive performance of the rat, In order to carefully, there are still rat measures in the storage , such as the umbrella skirt quesunbroken, defects, should be tested for waste treatment.
Our Services
Our company always sticks to the business concept of “basing on science & technology, quality first, good faith highest, keep improving”, and observe the tenet of “specialization, good faith, service, innovation, quality and benefit”. We’d like to sincerely provide high-quality products and service to clients both at home and overseas for mutual benefit. We warmly welcome friends all over the world to come and visit our company or contact us to negotiate business.
